11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5" Bore 1.25"

Brand Name : OEM

Model Number : 11V9

Certification : MPA

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 1000 pcs per month

Delivery Time : 15 days

Packaging Details : Export standard

Bond : Resin

Abrasive : Diamond or CBN

Diamond grit : 120/140,140/170 or as customers'required

Hardness : Superhard materials

Core : Aluminum

Application : for Tools Sharpening/ Tungsten Carbide

OEM : accepted

Main market : Asia, East Area,etc.

Contact Now

1.11V9D5T45X3G15P Diamond Flaring Cup wheels; OD 5"; Bore 1.25"; Thickness 45mm; Grit 150; Resin Bond; Wet

Resin Bond; Wet Grinding Wheels
All diamond and CBN Wheels can be used for fluting carbides and high speed steels, grinding and re-sharpening tools, trimming and polishing all kinds of glasses, crystal, braun tuve housing, etc
Custom-design wheels, e.g. paper cutter grinding wheels, centerless grinding wheels, internal hole grinding wheels, bakelife board body wheels, etc are available.

Product Name	11V9D5T45X3G15P Diamond Flaring Cup wheels; OD 5"; Bore 1.25"; Thickness 45mm; Grit 150; Resin Bond; Wet
Abrasive	Diamond/CBN
Mateial	Aluminium & Steel
Bond	Resin
Size	D:50/75/100/125/150mm
Grit	120/140,140/170 or as customers'required
Packing	color Box,1pc/box,or as your request !
HS code	6804
Shapes	11V9 70 DEGREE
ODM&OEM	Availiable
Sample Cost	Depends on the design, please contact us to discuss further
Usage	widely used in the fields of tungsten carbide, ceramics, glsasses,, natural diamond, stones, etc.

Diamond and CBN grinding wheels are ideal for producing and re-sharpening tungsten carbide and HSS tools.

3. Specifciation

Diameter(D)	Thickness (T)	Width (X)	w	Hole(H)
50	20	2	6	20/32
75	30	3	10	20/32
100	35	3	10	20/32
125	40	3	10	20/32
150	50	3	10	20/32

They are particularly cost effective for grinding brittle and short-chip materials
e.g. ceramic, glass, tungsten carbide, titanium, alloyed steel, graphite, magnetic sintered and composite
materials.

11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5" Bore 1.25"

Product Tags:

resinoid grinding wheels

resin bond abrasive

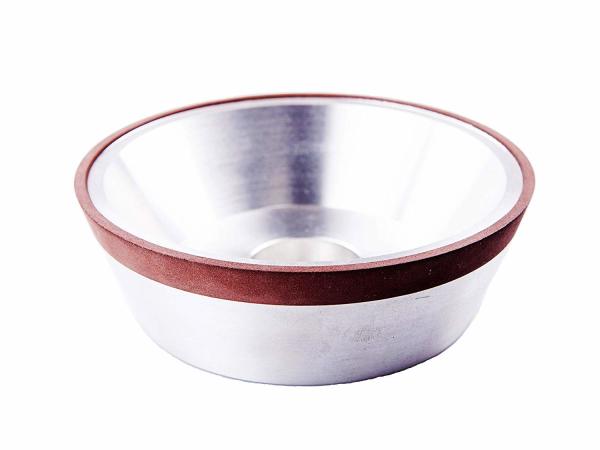

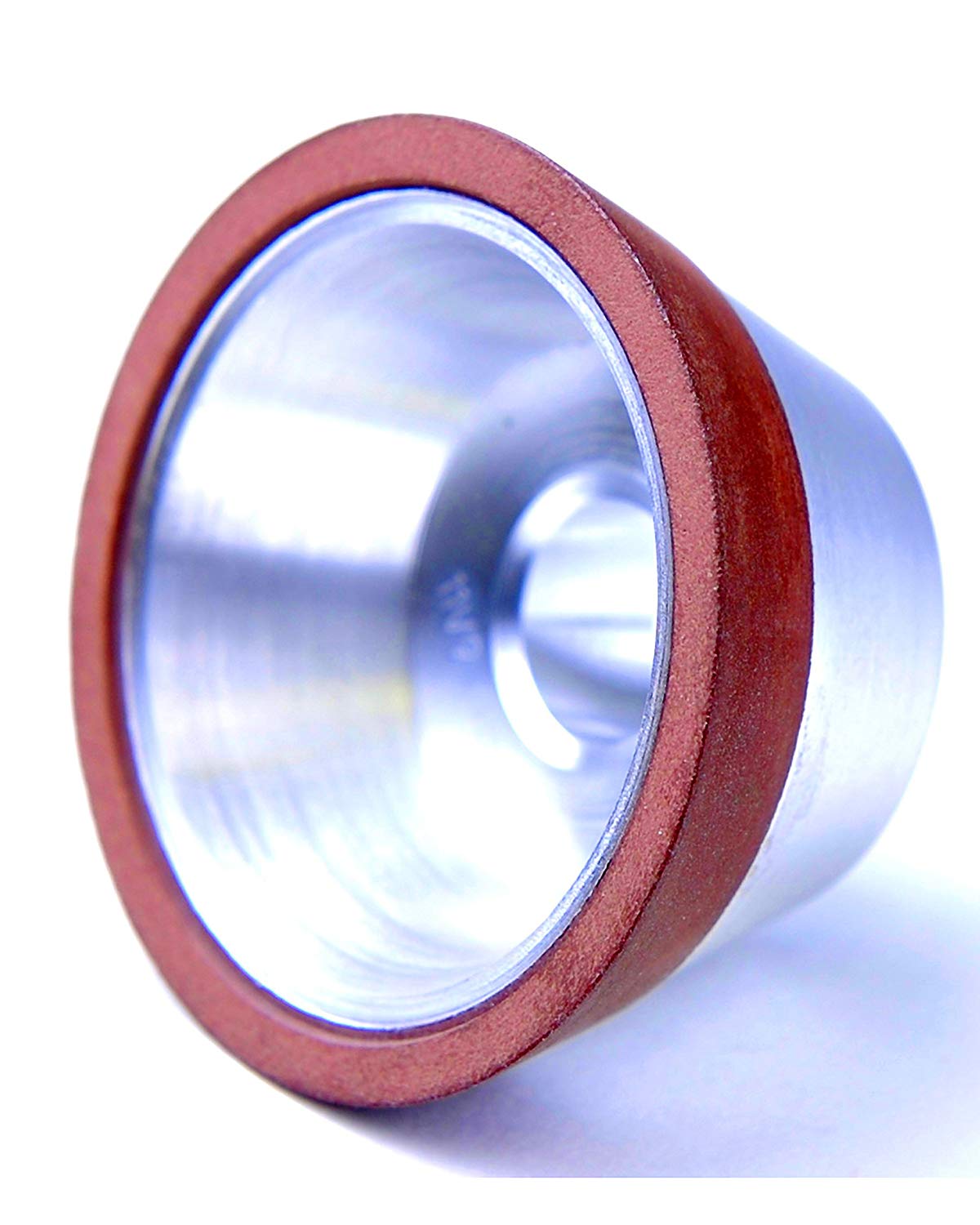

11V9D5T45X3G15P Resin Bond Diamond Grinding Wheel Flaring Cup Wheel OD 5" Bore 1.25" Images
